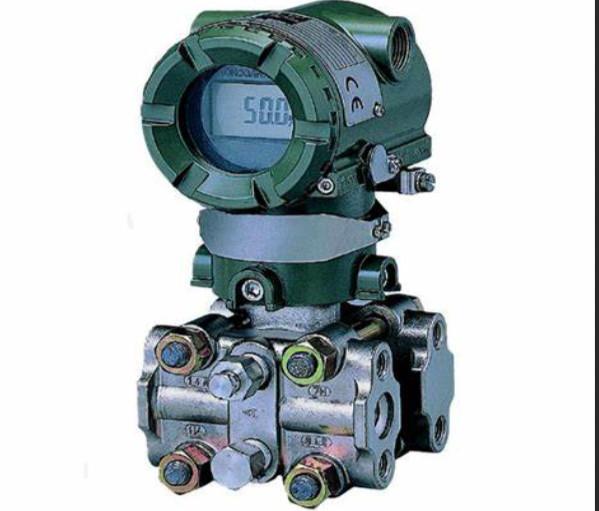

EJA120E-JES4G-912DB EJA120E Draft Range Differential Pressure Transmitter

Description:

Manufacturer : Yokogawa

Product No. : EJA120E-JES4G-912DB

Product Type : Differential Pressure Transmitter

Output Signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)

Measurement span (capsule) : E = 0.1 to 1 kPa (0.4 to 4 inH2O)

Wetted parts material : S

Cover flange and process connector : ASTM CF-8M

Capsule : Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others)

Capsule gasket : PTFE Teflon

Vent/Drain plug : 316 SST

Process connections : 4 = with 1/2 NPT female process connector

Bolts and nuts material : G = 316L SST

Amplifier housing : 1 = Cast aluminum alloy

Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plugs

Integral indicator : D = Digital indicator

Weight : 3.7 Kg

Shipping Weight : 8 Kg

Additional Informaiton:

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA120E is the traditional-mount Draft Range Pressure Transmitter in this series.

EJA120E features include:

• ± 0.2% Accuracy (0.09% available with /HAC option)
• ± 0.3% per 1 year Stability
• 150 ms Response Time
• Exida and TUV SIL 2/3 Certified
• Local Parameter Setting (LPS)
• True Draft Range design

Avaialble with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
