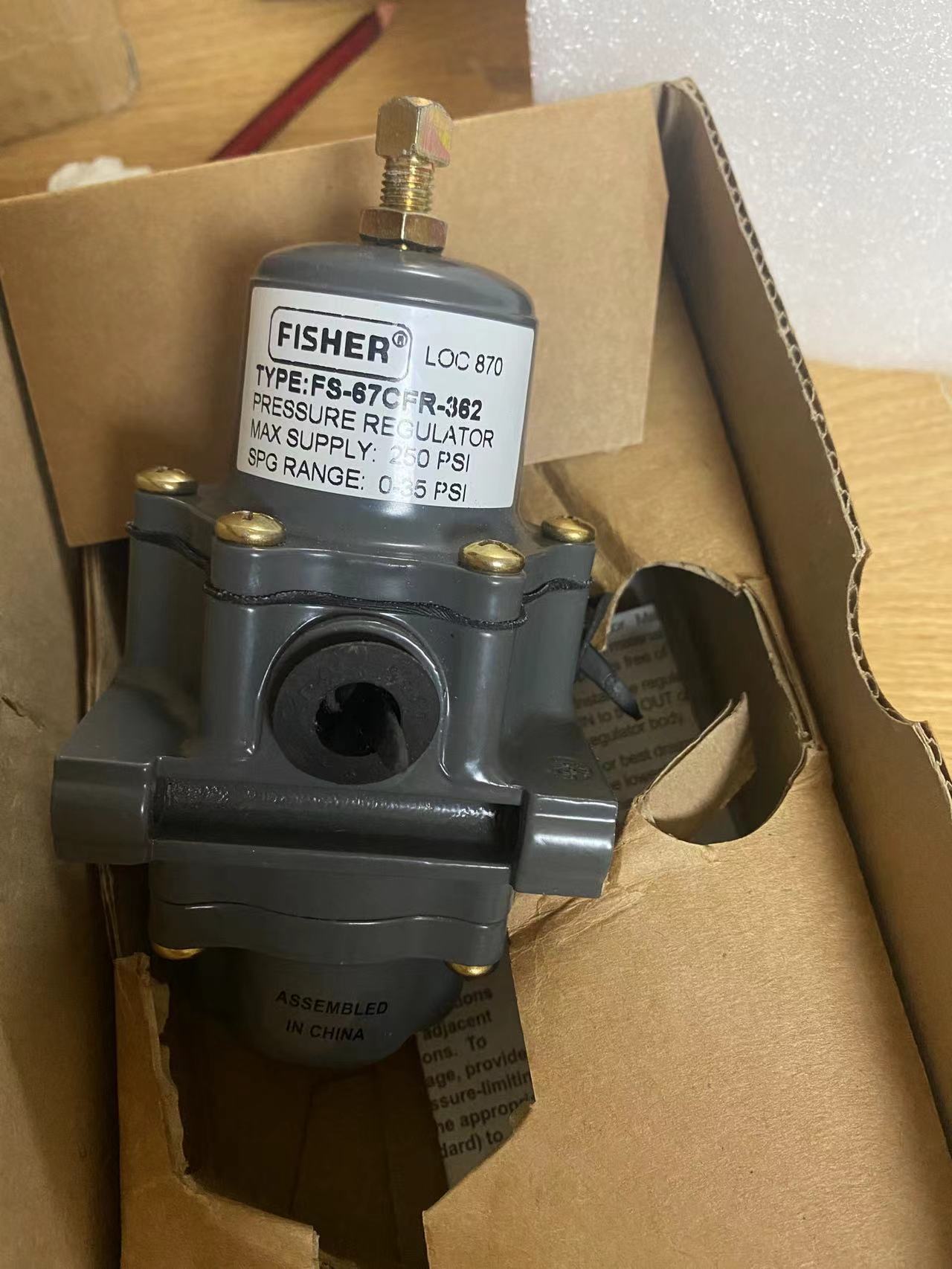

67C Series Instrument Supply Regulators 67CFR 362
Description:
Estimated Lead Time : Usually ships in 1 - 10 working days.
Manufacturer : Fisher
Model No. : 67CFR-362
Product type : 67C Series Instrument Supply Regulators
Body and Spring Case : Aluminum (ASTM B85/Alloy 380)
Pusher Post and Valve Cartridge : Polyester resin
Upper Spring Seat : Zinc-plated steel
Lower Spring Seat, Diaphragm Plate : Chromate conversion coated
Aluminum
Control Spring : Plated Steel or Inconel® (NACE)
Diaphragm and O-Rings : Nitrile (NBR), Fluorocarbon (FKM) or
Silicone (VMQ)(
Soft Seat and Gaskets : Nitrile (NBR) or Fluorocarbon (FKM)
Bolting, Adjusting Screw, Locknut : Zinc-plated steel or Stainless
steel
Shipping Weight : 3 Kg
Fisher Type 67CFR-362 Instrument Supply Regulator are typically used to provide constantly controlled, reduced
pressures to pneumatic and electropneumatic controllers and other
instruments. The 67C Series are suitable for most air or gas
applications. Other applications include providing reduced pressure
for air chucks, air jets, and spray guns.
Specifications:
Body Material: Aluminum
Body Size and End Connection: 1/4 NPT
Maximum Inlet Pressure: 250 psig / 17.2 bar
Maximum Emergency Outlet Pressure: 50 psi / 3.4 bar over outlet
setting
Temperature Capabilities: NBR: -40 to 180°F / -40 to 82°C || FKM: 0
to 300°F / -18 to 149°C || Silicone (VQM) Diaphragm and Low Temp
Bolting: -60 to 180°F / -51 to 82°C
Common Models:
| 67CFR-206 | 67CF-207 |
| 67CFR-224 | 67CF-208 |
| 67CFR-225 | 67CF-210 |
| 67CFR-226 | 67CF-211 |
| 67CFR-235 | R622-1 |
| 67CFR-237 | 67CRF-600TB |
| 67CR-239 | 67CRF-601 |
| 67CFR-24 | 67CRF-600SC |
| 67CFR-26 | 67CRF-601TB |
| 67CFR-260 | 67CRF-N224 |
| 67CFR-362 | 67CRF-N225 |
| 67CFR-581 | 67CR-206 |
| 67CFR-585 | 67CR-207 |
| 67CFR-600 | 67CR-208 |
| 67CRF-600SC | R622-2 |
| 67CF-362SC | R622-3 |
| 67CF-362TB | R622-4 |
| 67CFR-38 | R622-5 |
| 67C-413 | R622-6 |
| 67C-414 | R622-7 |
| 67C-443 | R622-18 |
| 67CF-206 | R622-20 |
Our Advantage:
Best possible prices and delivery time
Long time experience in the field
Well trained staff
Own warehouse facilities
Best relationships with branch office of manufacture
Flexible and individual service for you
Cheap and safe forwarder for shipments (air)
Frequently Asked Questions:
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check
details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and
IPS,PDE,BRE,KARAPOST etc.
Our Product Range:
Transmitter, Safety barries, Flow meters, Probe, Sensor,
Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
