    Proline Promass I 300 Coriolis Flowmeter straight single tube design 8I3B50-1UA1/0

    Ask Lasest Price
    Brand Name : Endress Hauser
    Model Number : 8I3B50-1UA1/0
    Certification : Rohs
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 5000pcs/month
    Delivery Time : On request
    • Product Details
    • Company Profile

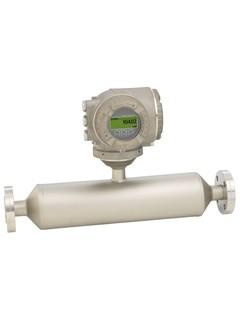

    Proline Promass I 300 Coriolis Flowmeter straight single tube design 8I3B50-1UA1/0

    Proline Promass I 300 Coriolis flowmeter 8I3B50-1UA1/0


    Measuring tube Titanium grade 9
    Connection Titanium grade 2

    Max. process pressure

    PN 100, Class 600, 63K


    Proline Promass I 300 Coriolis Flowmeter straight single tube design 8I3B50-1UA1/0Proline Promass I 300 Coriolis Flowmeter straight single tube design 8I3B50-1UA1/0

    • Measuring principle

      Coriolis

    • Product headline

      Combines in-line viscosity and flow measurement with a compact, easily accessible transmitter.
      .
      Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.

    • Sensor features

      Energy‐saving – full-bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
      Straight, easy-to-clean single-tube system. TMB technology. Measuring tube made of Titanium.

    • Transmitter features

      Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
      Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.

    • Nominal diameter range

      DN 8 to 80 (⅜ to 3")

    • Wetted materials

      Measuring tube: Titanium grade 9
      Connection: Titanium grade 2

    • Measured variables

      Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity

    • Max. measurement error

      Mass flow (liquid): ±0.10 %
      Volume flow (liquid): ±0.10 %
      Mass flow (gas): ±0.50 %
      Density (liquid): ±0.0005 g/cm³

    • Measuring range

      0 to 180 000 kg/h (0 to 6600 lb/min)

    • Max. process pressure

      PN 100, Class 600, 63K

    • Medium temperature range

      –50 to +150 °C (–58 to +302 °F)

    • Ambient temperature range

      Standard: –40 to +60 °C (–40 to +140 °F)
      Option: –50 to +60 °C (–58 to +140 °F)

    • Sensor housing material

      1.4301/1.4307 (304L), corrosion resistant

    • Transmitter housing material

      AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design

    • Degree of protection

      IP66/67, type 4X enclosure
      IP69

    • Display/Operation

      4-line backlit display with touch control (operation from outside)
      Configuration via local display and operating tools possible
      Remote display available

    • Outputs

      3 outputs:
      4-20 mA HART (active/passive)
      4-20 mA (active/passive)
      Pulse/frequency/switch output (active/passive)
      Relay output

    • Inputs

      Status input
      4-20 mA input

    • Digital communication

      HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

    • Power supply

      DC 24 V
      AC 100 to 230 V
      AC 100 to 230 V / DC 24 V (non-hazardous area)

    • Hazardous area approvals

      ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex

    • Product safety

      CE, C-tick, EAC marking

    • Functional safety

      Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

    • Metrological approvals and certificates

      Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
      Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

    • Pressure approvals and certificates

      PED, CRN

    • Material certificates

      3.1 material

    • Hygienic approvals and certificates


      Specs at a glance

      • Max. measurement error

        Mass flow (liquid): ±0.10 %
        Volume flow (liquid): ±0.10 %
        Mass flow (gas): ±0.50 %
        Density (liquid): ±0.0005 g/cm³

      • Measuring range

        0 to 180 000 kg/h (0 to 6600 lb/min)

      • Medium temperature range

        –50 to +150 °C (–58 to +302 °F)

      • Max. process pressure

        PN 100, Class 600, 63K

      • Wetted materials

        Measuring tube: Titanium grade 9
        Connection: Titanium grade 2

      Field of application

      The straight single-tube design of Promass I provides in-line viscosity measurement in addition to mass flow, density and temperature measurement. With its compact transmitter Promass I 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology ensures compliance and process safety at all times.


      • Measuring principle operates independently of physical fluid properties such as viscosity or density

      • Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.

      Device properties

      • Straight, easy-to-clean single-tube system

      • TMB technology

      • Measuring tube made of Titanium

      • Compact dual-compartment housing with up to 3 I/Os

      • Backlit display with touch control and WLAN access

      • Remote display available

      Benefits

      • Energy-saving – full bore design enables minimal pressure loss

      • Fewer process measuring points – multivariable measurement (flow, density, temperature)

      • Space-saving installation – no in/outlet run needs

      • Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses

      • Reduced complexity and variety – freely configurable I/O functionality

      • Integrated verification – Heartbeat Technology


      Important Terms:

      1. Place of delivery (EXW/FOB/CIF): EXW

      2. Packing cost: For free

      3. Unit weight: Kg/lbs 8kg

      4. Unit dimensions: (W x L x H) : 40*35*30cm

      5. HS Code: 90261000

      6. Payment terms: TT

      7. Warranty: 12 months


      Our Advantage:

      Best possible prices and delivery time

      Long time experience in the field

      Well trained staff

      Own warehouse facilities

      Best relationships with branch office of manufacture

      Flexible and individual service for you

      Cheap and safe forwarder for shipments (air)



      Frequently Asked Questions:

      Q: Does your goods are new and original?

      A: Yes, they are new and original.


      Q: How long warranty?

      A: One-year warranty.


      Q: Does any certificates can be provided?

      A: Yes, it depends on what product you request, please check details with our sales.


      Q: Varied payment methods.

      A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB


      Q: SHIPPING:

      A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.


      Our Product Range:

      Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.

      Proline Promass I 300 Coriolis Flowmeter straight single tube design 8I3B50-1UA1/0

      Proline Promass I 300 Coriolis Flowmeter straight single tube design 8I3B50-1UA1/0

      3-A, EHEDG, cGMP
