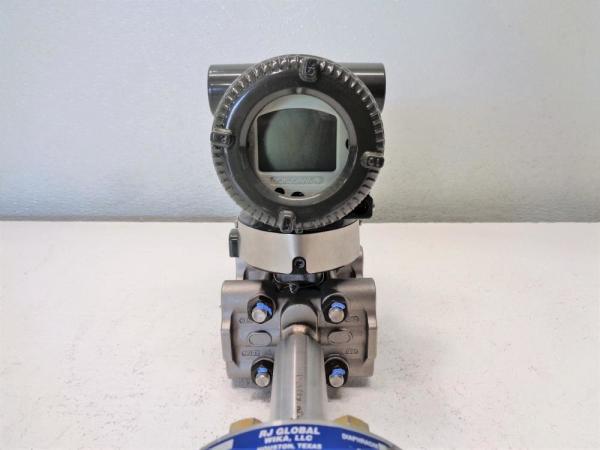

EJA430E-FAS5G-919DJ Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto
Description:
Manufacturer : Yokogawa
Product No. : EJA430E-FAS5G-919DJ/KS26/M01/T01/D3
Product type : Gauge Pressure Transmitter
EJA430E : Gauge pressure transmitter
A - Measurement span (capsule) : 0.03 to 3.5 MPa (4.3 to 500 psi)
S - Wetted parts material
Cover flange and process connector : ASTM CF-8M
Capsule : Hastelloy C-276 (Diaphragm) F316L SST, 316L SST (Others)
Capsule gasket : Teflon-coated 316L SST
Vent/Drain plug : 316 SST
5 - Process connections : without process connector (1/4 NPT female
on the cover flanges)
G - Bolts and nuts material : 316L SST
9 - installation : Horizontal piping and left side high pressure
1 - Amplifier housing : Cast aluminum alloy
9- Amplifier housing : M20 female, two electrical connections and a
blind plug
Weight : 2.8 Kg
Shipping weight : 8 Kg
Additional Informaiton:
The EJA430E is a traditional-mount gauge pressure transmitter in
the series.
EJA430E features include:
0.055% Accuracy (0.04% Accuracy optional)
0.1% Stability per 10 years
90 ms Response Time
Exida and TUV SIL 2/3 Certified
Local Parameter Setting (LPS)
| Hot sale Original Japanese Yokogawa 4-20ma Pressure Transducer
EJA110E |
| L Capsule | M Capsule | H Capsule | V Capsule |
| Range | -10 to 10 kPa | -100 to 100 kPa | -500 to 500 kPa | -0.5 to 14 MPa |
| (-40 to 40 inH2O) | (-400 to 400 inH2O) | (-2000 to 2000 inH2O) | (-70 to 2000 psi) |
| Span | 0.5 to 10 kPa | 1 to 100 kPa | 5 to 500 kPa | 0.14 to 14 MPa |
| (2 to 40 inH2O) | (4 to 400 inH2O) | (20 to 2000 inH2O) | (20 to 2000 psi) |
| Accuracy | ±0.075% | ±0.065% | ± 0.065% | ±0.065% |
| Degrees of Protection | IP67, NEMA 4X, and JIS C0920 immersion proof |
| Certificates | FM, CENELEC ATEX, CSA, IECEx |
| Output | 4 to 20 mA DC, FOUNDATIONTM fieldbus or PROFIBUS PA 2-wire system with digital communication |
| Supply Voltage | BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically
safe type) |
| Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5
V DC for FISCO model) |
| Ambient temperature | -40 to 85 deg C (-40 to 185 deg F) (general use type) |
| -30 to 80 deg C (-22 to 176 deg F) (with integral indicator) |
| Process Temperature | -40 to 120 deg C (-40 to 248 deg F) (general use type) |
| Maximum Working Pressure | 16MPa(2300psi) |
| 3.5MPa(500psi) for L capsule with special materials |
| Mounting | 2-inch pipe mounting |
| Wetted parts material | Capsule | SUS316L(Diaphragm material is Hastelloy C-276), |
| Hastelloy C-276, Tantalum, Monel |
| Cover flange | SUS316, Hastelloy C-276, Monel |
| Housing | Cast aluminum alloy or SUS316 equivalent stainless steel (optional) |
|
