3500/25(149369-01)

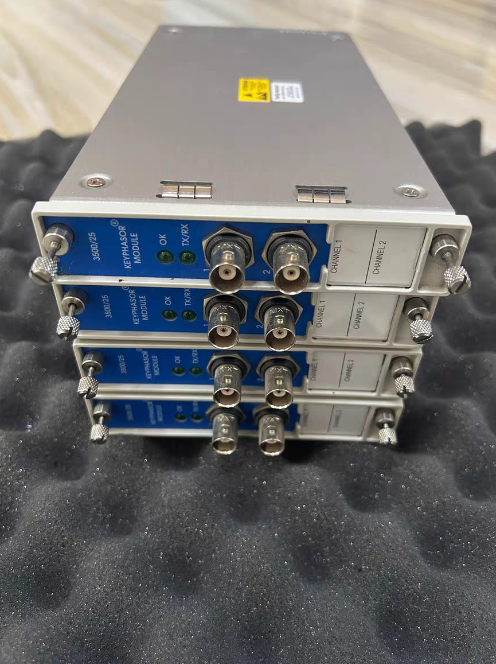

Enhanced Keyphasor Module Datasheet

Description

The 3500/25 Enhanced Keyphasor Module is a half-height, two-channel module used to provide Keyphasor signals to the monitor modules in a 3500 rack. The module receives input signals from proximity probes or magnetic pickups and converts the signals to digital Keyphasor signals that indicate when the Keyphasor mark on the shaft coincides with the Keyphasor transducer. The 3500 Machinery Protection System can accept up to four Keyphasor signals for normal configuration and up to eight Keyphasor signals in a paired configuration. Keyphasor signal is a once-per-turn or multiple event-per-turn pulse from a rotating shaft or gear used to provide a precise timing measurement. This allows 3500 monitor modules and external diagnostic equipment to measure shaft rotative speed and vector parameters such as 1X vibration amplitude and phase. The Enhanced Keyphasor Module is an improved 3500 system module. It offers expanded Keyphasor signal processing capabilities over the previous design while maintaining complete downward-compatibility in terms of form, fit and function with existing Keyphasor modules for use in legacy systems. The Keyphasor module, PWA 125792-01, is completely replaced by the updated 149369-01 module. When a system Keyphasor input is required for Triple Modular Redundant (TMR) applications, the 3500 system should employ two Keyphasor modules. In this configuration, the modules work in parallel to provide both a primary and secondary Keyphasor signal to the other modules in the rack

Compliance and Certifications FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: l This device may not cause harmful interference. l This device must accept any interference received, including interference that may cause undesired operation. EMC European Community Directive: EMC Directive 2014/30/EU Standards: EN 61000-6-2; Immunity for Industrial Environments EN 61000-6-4; Emissions for Industrial Environments Electrical Safety European Community Directive: LV Directive 2014/35/EU Standards: EN 61010-1 RoHS European Community Directive: RoHS Directive 2011/65/EU Maritime DNV GL rules for classification – Ships, offshore units, and high speed and light craft ABS Rules for Condition of Classification, Part 1 l Steel Vessels Rules l Offshore Units and Structures

Related Product Recommendation:

Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)

Frequently Asked Questions:

Q: Does your goods are new and original?

A: Yes, they are new and original.

Q: How long warranty?

A: One-year warranty.

Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.
