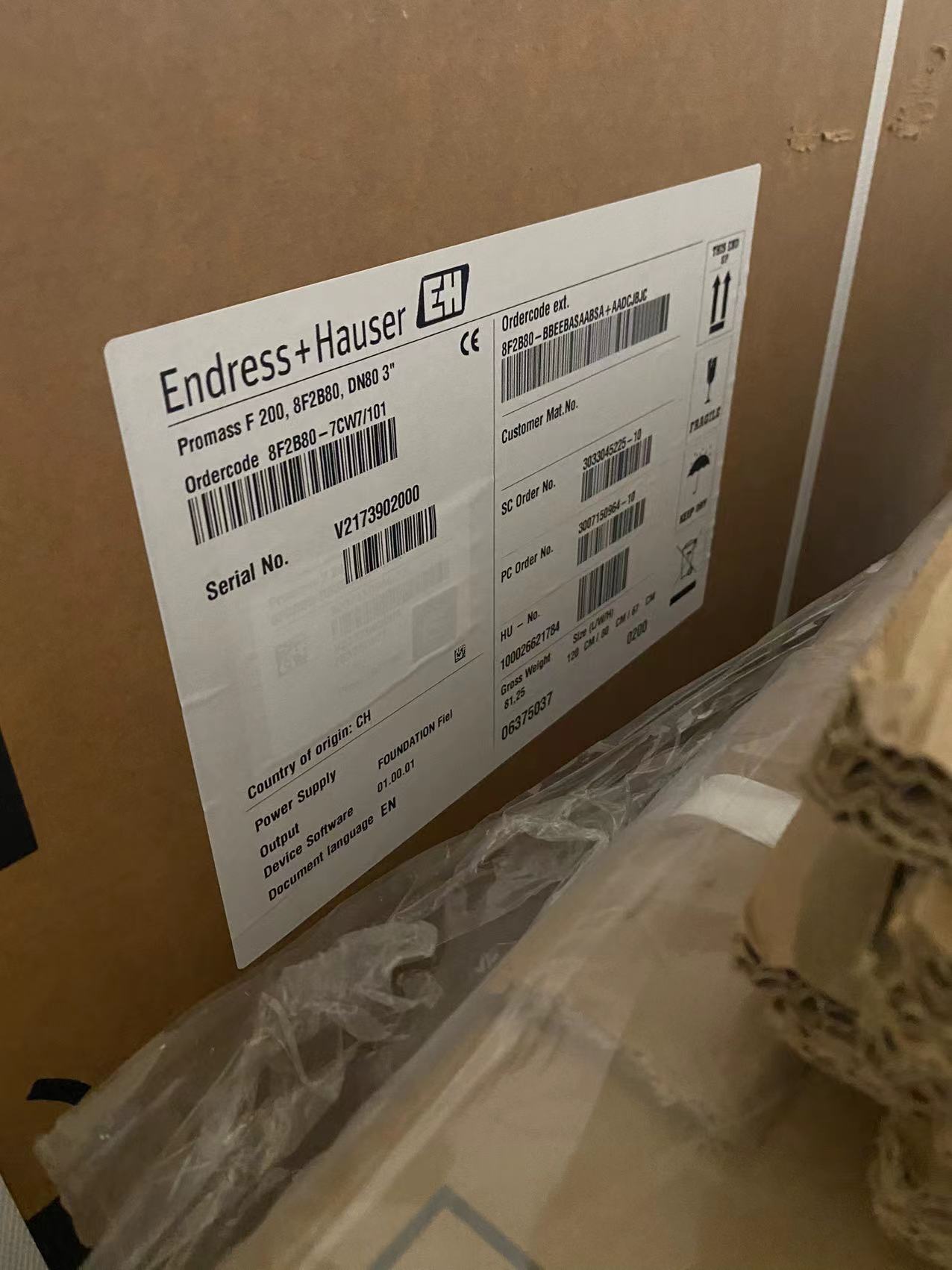

Proline Promass Coriolis Flowmeter 8F2B80-BBEEBASAABSA+AADCJBJC

8F2B80-BBEEBASAABSA+AADCJBJC Proline Promass F 200 Coriolis Flowmeter

Model:8F2B80-BBEEBASAABSA+AADCJBJC
Approval: BB ATEX II1/2G Ex ia
Output; Input: E FOUNDATION Fieldbus; pulse/freq./switch output
Display; Operation: E SD03 4-line, illum.; touch control + data backup function
Housing: B GT18 dual compartment, 316L
Electrical Connection: A Gland M20
Meas. Tube Mat., Wetted Parts Surface: S AStainl. steel, not polished
Process Connection: ABS Cl.300 RF, 1.4404/316/316L, flange ASME B16.5
Calibration Flow: A 0.10% Mass
>Operation Language Display: AA English
>>Customized Parameterization: DC Output 1, liquid
>>Test, Certificate: JB Pressure test, internal procedure, test report
>>Test, Certificate: JC Inspection certificate 3.1, EN10204 (material certificate wetted parts+ sensor housing)
HS-Code: 90268020
Country of origin: CH
Country of dispatch: CH

Specs at a glance

Max. measurement error
Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.25 % Density (liquid): ±0.0005 g/cm³

Measuring range
0 to 70 000 kg/h (0 to 2570 lb/min)

Medium temperature range
Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +205 °C (–58 to +401 °F)

Max. process pressure
PN 100, Class 600, 63K

Wetted materials
Measuring tube: 1.4539 (904L); 1.4404 ; Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)

Field of application

Promass F has a long standing reputation as a highly accurate device. It is suited for broadest range of applications. Promass F 200 offers in addition genuine, industry-compliant two-wire technology. This enables seamless system integration into existing infrastructures. Additional advantages are high operational safety in hazardous areas thanks to an intrinsically safe design (Ex ia) and process safety at all times ensured by Heartbeat Technology.

• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Highest measurement performance for liquids and gases in a wide range of applications

Device properties

• Mass flow: measured error ±0.1 %
• Medium temperature up to +205 °C (+401 °F)
• Nominal diameter: DN 8 to 80 (3/8 to 3")
• Loop-powered technology
• Robust dual-compartment housing
• Plant safety: worldwide approvals (SIL, Haz. rea)

Benefits

• Highest process safety – immune to fluctuating and harsh environments
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Convenient device wiring – separate connection compartment
• Safe operation – no need to open the device due to display with touch control, background lighting
• Integrated verification – Heartbeat Technology

​Proline Promass F 200 with highest measurement performance for liquids and gases
