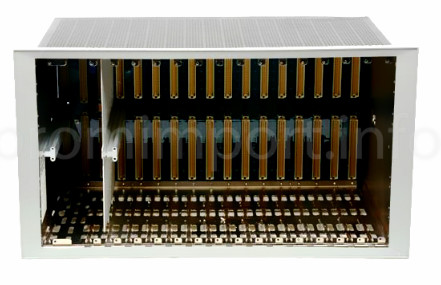

Bently Nevada 3500/05-01-01-00-00-01 System Rack 3500 system

The 3500/05 System rack design holds all 3500 monitor modules and rack power
supplies. It allows the various 3500 modules to communicate with one another

and the power supplies to distribute power to each module as required.
3500 Racks are available in two sizes:
1. Full-size Rack – 19-inch EIA rack with 14 available module slots
2. Mini-Rack – 12-inch rack with 7 available module slots
3500 racks are available in three formats:
1. Panel mount – This rack format is mounts to rectangular cut-outs in
panels, and secures to the panel using clamps supplied with the rack.
Wiring connections and I/O modules are accessible from the rear of the
rack.
2. Rack mount – This rack format is mounts the 3500 rack on 19-inch EIA
rails. Wiring connections and I/O modules are accessible from the rear
of the rack.
3. Bulkhead mount – This rack format mounts the rack against a wall or
panel when it is not possible to access the rear of the rack. Wiring
connections and I/O modules are accessible from the front of the rack.
The 3500/05 Mini-Rack is not available in this format.

Ordering Information
Rack Ordering Information
3500/05-AXX-BXX-CXX-DXX-EXX
A: Rack Size
0 1 19-inch Rack (14 module slots)
0 2 12-inch Mini-Rack (7 module
slots)
B: Mounting Options
0 1 Panel Mount Option, Full-Size
Rack
0 2 Rack Mount Option, Full-Size
Rack (mounts to19-inch EIA
Rack)
0 3 Bulkhead Mount Option (not
available in Mini-Rack)
0 4 Panel Mount Option, Mini-Rack
0 5 Rack Mount Option, Mini-Rack

C: Agency Approval Option
0 0 None
0 1 CSA - C – US
0 2 ATEX/CSA
D: Reserved
0 0 None
E: European Compliance Option
0 0 None
0 1 CE
